Descripción

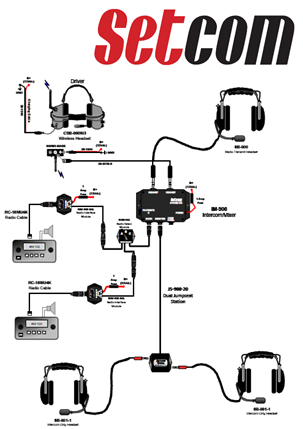

Master Station, System 900
- Single Radio Interface
- Full Duplex Intercom
- Two Radio Transmit Circuits / Three
- Radio Transmit Ports With Driver’s
- Port Paralleled With the Pump Panel Port
- Pump Panel Port for Radio Transmit
- Remote Port for Up to Eight Additional
- Intercom-Only Positions
- Footswitch Port
- DC to DC Converter. Completamente Aislado (9-36V/12V 10Watt)
Radio Interface Module, System 900
- Microphone and Speaker Amplifiers and
- Level Adjust
- Accepts Balanced Audio Input
Radio Cable
- 18’ Radio Cable, System 900, 1310, or 1600
- For Motorola APX/XTL series of mobile radios, dash-mount or remote-mount versions, also for PM1500 Radios.
Wireless Headset With Base 1EA:CSB-900W3 and 900W3-Base
- Wireless Headset With Base
- 1 EA: CSB-900W3 and 900W3 Radio
- Transmit Base
- Rango de distacia de 300m lineal sin obstrucción, rango tipico 90m.
Adapter Cable: 900 Wireless
- Adapter Cable for 900 Series Wireless
- Headsets and CommandCom Control Module
- Connects 900 Series Master Station to Wireless Base Unit (900W_-Base & 901W_-Base)
- Connects 900 Series Master Station to CCCM-900 and CCCM-901-3
- 5’ Straight Cable

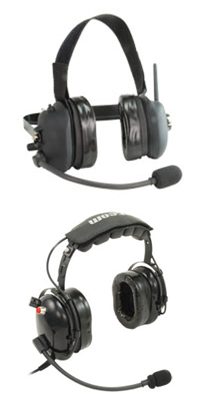

Headset – Heavy Duty
- Radio Transmit Headset, System 900
- Dual Ear Muff – Over-the-Head
- Reversible Cable Dress
- Always Live on the Intercom
- Radio Push-to-Talk and Volume Control in the Headset
- 15’ Coil-Cord
- New & Improved Design –
- Supersedes 7B-900
Jumpseat Station
- Two Jacks for Intercom-Only Positions
- 20’ Cable
Headset
- Intercom Only Headset, System 900
- Dual Ear Muff – Over-the-Head
- Reversible Cable Dress
- Intercom Push-to-Talk (Push-On/Push-Off) and Volume Control in the Headset
- 15’ Coil-Cord
- New & Improved Design –
- Supersedes 7B-901-1
Radio Select Module
- For Two Radios – Both With the Same
- Microphone Level
- Audio from Both Radios Mixed Together in Headsets
